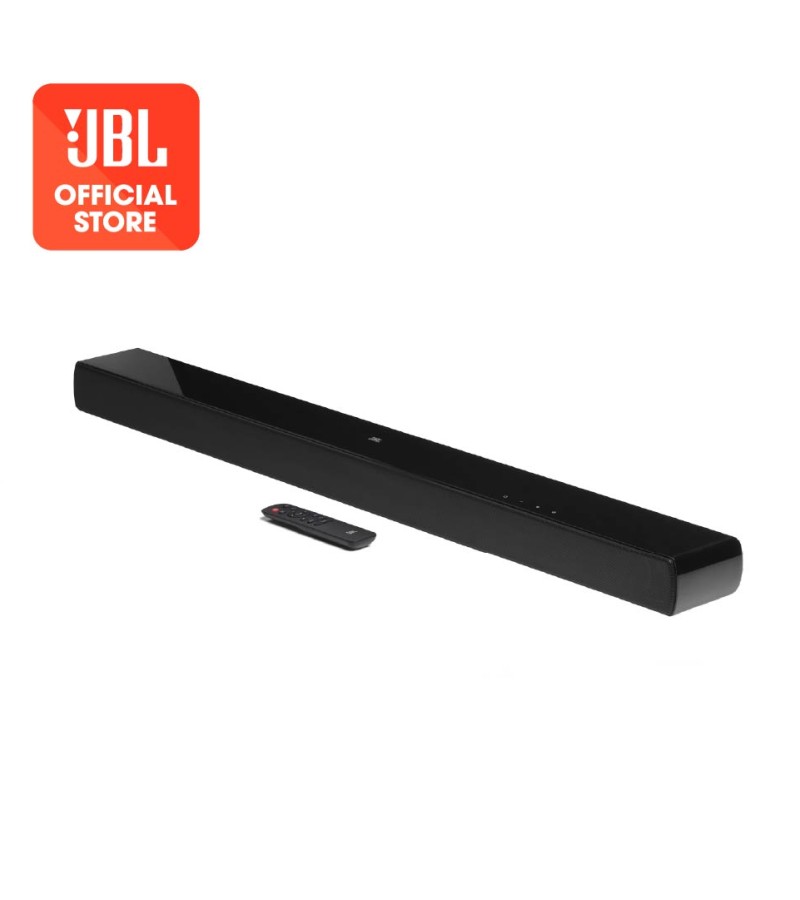

JBL影院SB120-2.0声道条形音箱

Simple. Compact. Powerful.

The JBL Cinema SB120 is a hassle-free soundbar in low profile that fits your home. It features Bluetooth for wireless

music and one cable connection with HDMI ARC for a simplified user experience. Combining 110W of power, two full range drivers,

two 2.5" woofers, a built-in subwoofer for deep bass and Dolby digital, it delivers powerful sound for the ultimate listening experience.

Technical Specifications

• Power supply: 100 – 240VAC, ~ 50/60Hz
• Total speaker power output (Max. @THD 1%): 110W
• Soundbar power output (Max. @THD 1%): 2 x 27W full range driver + 56W woofer
• Soundbar transducer: 2 x 2.25" full range driver + 2 x 2.5" woofer
• Operating temperature: 0°C – 45°C
• HDMI Video output (With Audio return channel): 1
• HDMI HDCP version: 1.4 Max SPL: 82dB
• Frequency response: 40Hz – 20KHz Audio inputs: 1 Optical, Bluetooth (USB is for Service only.)
• Bluetooth version: 4.2
• Bluetooth profile: A2DP V1.3/AVRCP V1.5
• Bluetooth frequency range: 2402MHz – 2480MHz
• Bluetooth Max. transmitting power: <0dbm (EIRP) Modulation Type: GFSK, π/4 DQPSK
• Soundbar dimensions (WxHxD):
• 950 x 62 x 105 (mm)/37.4” x 2.44” x 4.13”
• Soundbar weight: 2.85kg
